Electrical enclosures play a critical role in protecting sensitive equipment from environmental hazards. In industries where safety, reliability, and performance are top priorities, following established standards is essential. One of the most widely recognized systems for classifying enclosure protection is the NEMA rating system. Understanding these standards and guidelines helps engineers, manufacturers, and facility managers select the right enclosure for their applications.
This article explores NEMA Enclosure protection, its classification system, applications, and best practices to ensure compliance with industry standards.
What is a NEMA Enclosure?

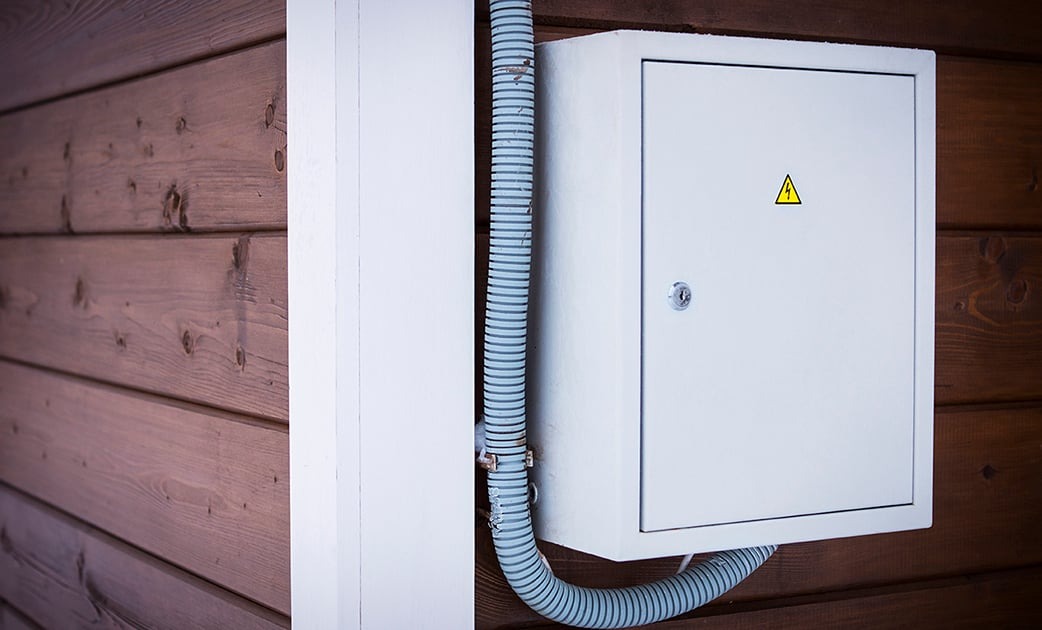

A NEMA enclosure is a housing designed to protect electrical components such as circuit breakers, control panels, wiring, and other sensitive equipment. NEMA stands for the National Electrical Manufacturers Association, an organization that sets performance standards for enclosures used in various environments.
Unlike some other standards that only measure resistance to dust and water, NEMA ratings go further by considering additional factors such as corrosion resistance, protection against oil and coolant, and use in hazardous locations.
Why NEMA Standards are Important
Electrical systems face exposure to dust, moisture, extreme temperatures, and accidental contact. Without proper protection, these hazards can lead to:
- Equipment damage
- Electrical failures
- Safety risks for workers
- Costly downtime and repairs
By following NEMA enclosure protection guidelines, industries can ensure that equipment remains reliable and safe, even in harsh environments. These standards also provide consistency across manufacturers, making it easier for engineers and contractors to choose enclosures that meet specific needs.
NEMA Enclosure Protection Categories
NEMA defines a wide range of enclosure types, each with specific levels of protection. Below are the most common categories:
1. NEMA Type 1
- Intended for indoor use
- Protects against limited amounts of dust and accidental contact
- Commonly used in offices and clean environments
2. NEMA Type 3
- Suitable for outdoor use
- Provides protection against rain, sleet, and windblown dust
- Often found in telecommunications, construction, and utility applications
3. NEMA Type 4 and 4X
- Designed for indoor and outdoor use
- Resistant to water spray, hose-directed water, and corrosion (4X adds corrosion resistance)
- Common in food processing, marine environments, and chemical plants
4. NEMA Type 6 and 6P
- Protects equipment during temporary submersion (6) or prolonged submersion (6P)
- Used in wastewater plants, underground facilities, and flood-prone areas
5. NEMA Type 12 and 13
- Designed for industrial environments
- Protects against dust, dirt, dripping liquids, and oil seepage
- Found in factories, automation systems, and mechanical workshops
Comparison Between NEMA and IP Ratings
While NEMA ratings are widely used in North America, Ingress Protection (IP) ratings are more common internationally.
- IP ratings focus on protection against solid objects (first digit) and liquids (second digit).
- NEMA ratings go beyond dust and water resistance, addressing corrosion, oil exposure, and icing.
For example:
- A NEMA 4 enclosure is roughly equivalent to IP66, but NEMA 4 also considers corrosion resistance, which IP66 does not.
Understanding the differences helps global companies ensure compliance with regional standards.
Key Guidelines for Selecting a NEMA Enclosure
Choosing the right enclosure requires more than matching a rating. Below are guidelines to follow:
1. Assess the Environment
- Indoor vs. outdoor installation
- Exposure to water, oil, chemicals, or dust
- Temperature fluctuations and UV exposure
2. Determine Protection Needs
- Will the equipment be subject to washdowns?
- Is there a risk of submersion?
- Are there hazardous materials nearby?
3. Consider Material Choices
- Steel for general-purpose applications
- Stainless steel or fiberglass for corrosive environments
- Polycarbonate for lightweight, impact-resistant needs
4. Check Industry Compliance
- Follow OSHA, NEC (National Electrical Code), and other applicable safety requirements
- Ensure compatibility with international standards if exporting equipment
5. Plan for Accessibility
- Enclosures should allow easy access for maintenance without compromising safety
- Locking mechanisms may be required for sensitive or hazardous applications
Common Applications of NEMA Enclosures
NEMA-rated enclosures are used across multiple industries:
- Manufacturing plants: Protecting control systems from dust, oil, and vibration
- Food and beverage processing: Withstanding washdowns and chemical cleaning agents
- Telecommunications: Guarding outdoor equipment from rain and dust
- Healthcare facilities: Securing sensitive diagnostic and monitoring equipment
- Utilities and power plants: Ensuring uninterrupted service in harsh outdoor environments
Each application requires matching the right enclosure type with environmental demands.
Maintenance and Inspection Guidelines
Even the best enclosures require regular maintenance to remain effective:
- Inspect Seals and Gaskets
- Replace damaged or worn seals to maintain water and dust protection.
- Check for Corrosion
- Especially important for outdoor and marine installations.
- Clean Regularly
- Remove dirt, oil, and other contaminants to prevent long-term damage.
- Test Accessibility Features
- Ensure hinges, locks, and fasteners work properly for safe access.
- Verify Compliance After Modifications
- Any drilling or modifications may compromise the rating.
Benefits of Using NEMA-Rated Enclosures
Using enclosures that comply with NEMA standards provides multiple benefits:
- Enhanced safety for personnel working around electrical systems
- Increased equipment lifespan due to protection from harsh conditions
- Reduced downtime by minimizing the risk of electrical failure
- Regulatory compliance, avoiding fines or shutdowns
- Versatility for a wide range of industries and applications
Future Trends in Enclosure Protection
As technology evolves, enclosure protection standards are also adapting. Some key trends include:
- Smart enclosures with sensors to monitor temperature, humidity, and access
- Eco-friendly materials designed for sustainability and recyclability
- Improved coatings to enhance corrosion resistance in extreme environments
- Global harmonization of standards, bridging gaps between NEMA and IP systems
These innovations ensure that enclosures will continue to meet the demands of modern industries.
Conclusion
NEMA enclosure protection is more than just a classification system—it is a crucial guideline for safeguarding electrical equipment in all types of environments. By understanding the standards, categories, and selection criteria, industries can ensure safety, compliance, and long-term reliability.
Whether used in manufacturing, utilities, or healthcare, following NEMA standards and guidelines is essential for preventing failures and protecting investments. As industries continue to grow and evolve, adherence to these standards will remain a cornerstone of safe and efficient operations.
